Straight Run: Single-Hinge

Flat Top Systems | Carbon & Stainless Steel | Straight Run: Single-Hinge

812/815 Series

812/815 Series
Available Materials:
• Carbon Steel
• 400 Series Stainless Steel
• Specialty Stainless Steels
• 300 Series Stainless Steel

These chains are built in accordance with ISO 4348 (B29.17) and are
single-hinge straight running conveyor chains, all featuring the same
hinge area dimensions. The chains do differ in terms of plate width
(maximum 7 1/2") and material grades.

A wide selection of stainless steel conveyor chains is available thus
providing the solution to your requirements, whether they be speed,
load, chemical resistance or purely budgetary.

The grades of materials are clearly defined by symbols which
simplifies the selection. The symbol signifies a top plate handling
process called SUPERFINISH. This is a fine grinding and polishing
operation which ensures the smoothest and flattest stainless
steel chain available. This finish is ideal for combination bottling
lines which may handle both glass and PET bottles or where
sensitive inspection devices are being used.

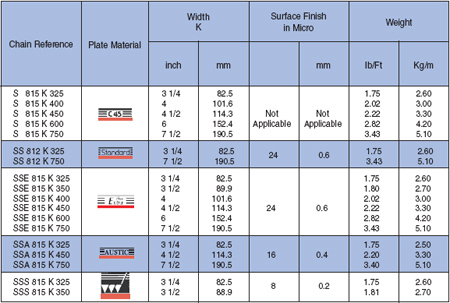

Table

Technical Diagram

Sprocket Table
