Side-Flexing: Series 882
Flat Top Systems
|
Plastic Flat Top
| Side-Flexing: Series 882
Series 882
882 Series
Available Materials:
• Low Friction Acetale
• New Generation
• Stainless Steels Pins
These chains are heavy duty
side-flexing design and due to
the robust hinge design provide
high loading capabilities. 882
chains are available in both
Bevel and Tab configuration, with
TAB series being available up to
12'' width.
882 chains feature the thicker
top plate of 3/16'' which makes
them compatible in ride eight to
the 831, 821, and 879 series.
All side-flexing chains are now
available in New Generation
material which offer improved
performance under dry
conditions in turn conveyors.
Pin design is a special D-shape
which provides an anti-rotation
flat and does not require a
knurled press fit which can
create unnecessary stresses in
the plastic under heavy side
loads in curves.

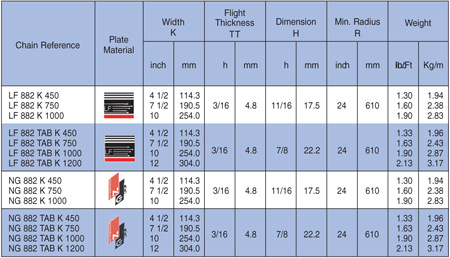

Table

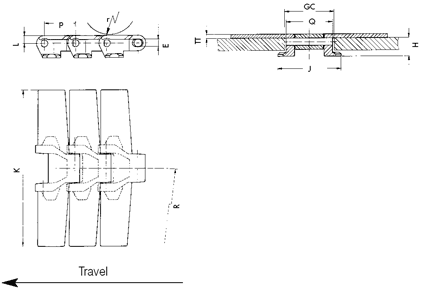

Technical Diagram

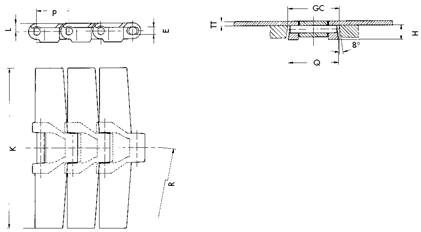

Technical Diagram/2
