Side-Flexing: Standard 8810 Series
Flat Top Systems
|
Carbon & Stainless Steel
| Side-Flexing: Standard 8810 Series
8810 Series
881O (Optimal) Series
Available Materials:
Specialty Stainless Steels
Featuring ground surface finish
Carbon Steel made to order
Optimal 8810 series is based on
traditional 881 side-flexing chains.
By optimizing the design of the
top plates, the chains links are
able to nest more closely, thus
providing improved product
stability at high speed.
As with the 881 series, all 8810
chains require either a bevel or
TAB to be welded on the
underside of the chain. These too
receive our unique grinding
operation to remove any
undesirable marking from the
welding process.
A special feature of the 8810
series is the inclusion of the 3 1/2"
(88.9 mm) width. This affords the
user an option other than the
typical 3 1/4" and 4 1/2" widths.

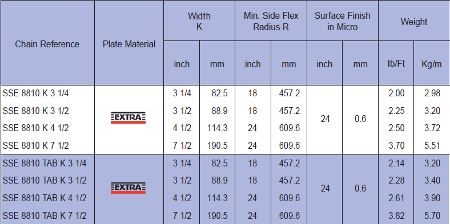

Table

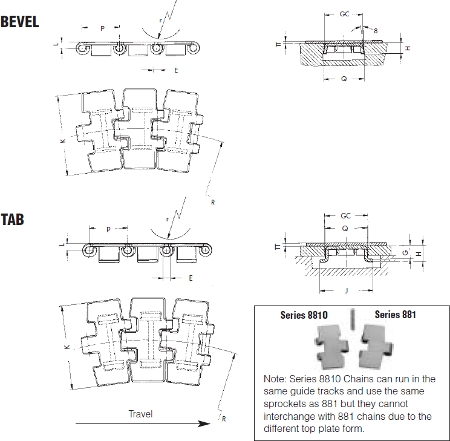

Technical Diagram
Dimension
