Straight Run: 1" Pitch
Flat Top Systems
|
Carbon & Stainless Steel
| Straight Run: 1" Pitch
515 Series
515 Series
Available Materials:
• Specialty Stainless Steels
These chains are built in accordance
with ISO 4348 (B29.17) and are single-hinge
straight running conveyor chains but
feature a smaller pitch than the popular
815 series. The pitch of 1" allows compact
conveyor designs, especially suitable for
the transportation of products with narrow
dimensions. The hinge width is identical
to the 815 series but much smaller plate
widths are available.515 series are
particularly used on the in-feed of
bottle washing equipment due to excellent
end transferability.

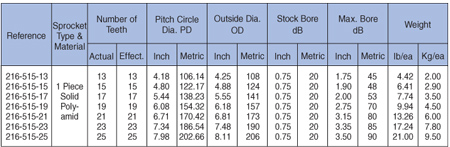

Table

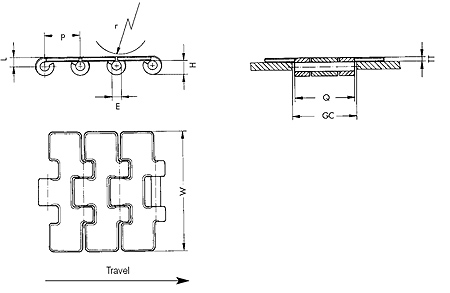

Technical Diagram

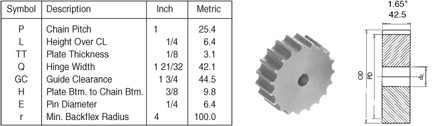

Table 2

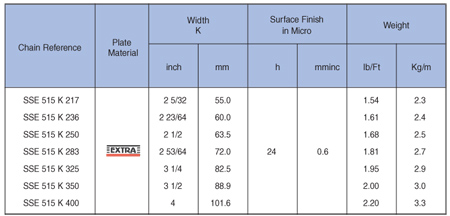

Dimensions
