Straight Run: Double-Hinge
Flat Top Systems
|
Carbon & Stainless Steel
| Straight Run: Double-Hinge
800/802/805 (HD) Series
802/805 (HD) Series
Available Materials:
• Carbon Steel
• 400 Series Stainless Steel
• Specialty Stainless Steels
These chains, built in accordance with ISO
4348 (B29.17), are double-hinge straight
running conveyor chains.
HD series feature a hinge area twice that
of the 812/815 series.This allows much higher
loads to be conveyed in such applications
as palletizers or heavy crate conveying.
Note: These chains are only
available with a plate width of
7 1/2".

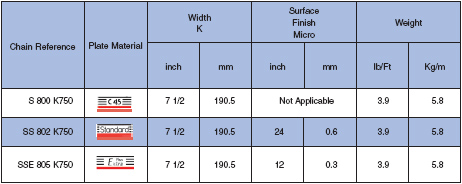

Table

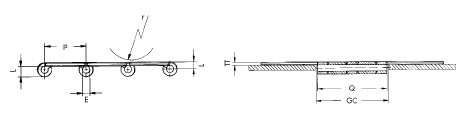

Technical Diagram
Sprocket Table
