Series 880/879

880/879 Series
Available Materials:
• Low Friction Acetale
• New Generation
•Anti-Static Acetal
• Stainless Steels Pins

These side-flexing chains have
the same basic external
dimensions as the 881 stainless
steel series and can operate in
the same design track. As
with the steel chain series 880
and the 879 chains are available
in both Bevel and TAB
configuration.

879 chains feature the thicker top
plate of 3/16'' which makes them
compatible in ride height to the
831, 821 and 882 series.

All side-flexing chains are now
available in New Generation
material which offers improved
performance under dry
conditions in turn conveyers.

880 chains are also available in
3 1/2'' width offering advantages
for the transportation of wider
bottles and containers.

Pin design is a special D shape
which provides and anti-rotation
flat and does not require a
knurled press fit which can
create unnecessary stresses in
the palstic under heavy side
loads in curves.

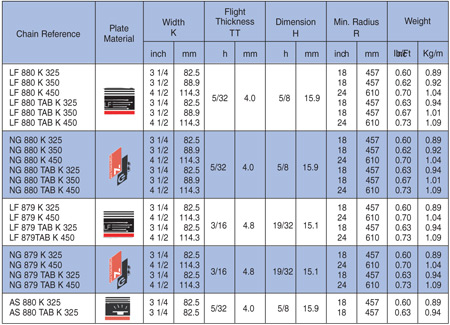

Table

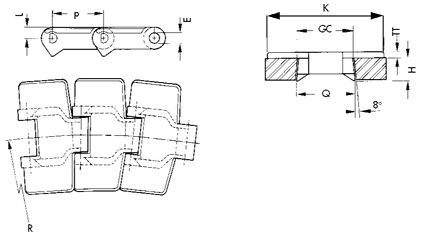

Technical Diagram

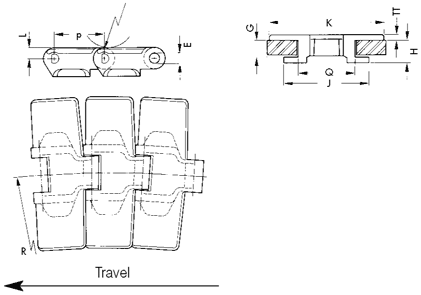

Technical Diagram/2

Description
