Straight Run: Mini Series
Flat Top Systems
|
Plastic Flat Top
| Straight Run: Mini Series
Mini Series
Mini Series
Available Materials:
• Delrin Acetate (Black)
• Delrin Acetate (Grey)
• Low Friction Acetal
• Stainless Steel Pins
Exclusive Mini-hinge design for
use in areas where space is
restricted or for the small
containers or bottles.
Ideal for the pharmaceutical
industry and for the filling of
miniature spirit bottles.
Both Series 38 K 32 and K 50
chains have their own unique
hinge designs which create new
possibilites for conveyor
designers.
Sprockets standard 820 series
but with narrow width.

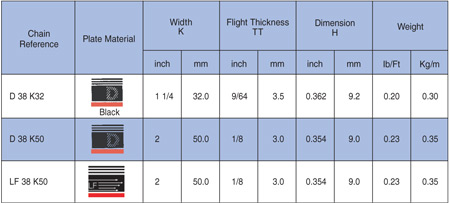

Table

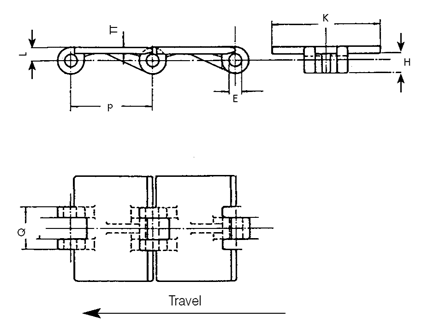

Technical Diagram

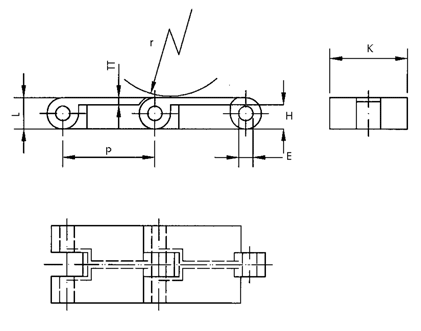

Technical Diagram/2
Description
