Two-Piece 1873

1873 Series
Available Materials:

Top Plates:
• Delrin Acetal
• Low Friction Acetal
• New Generation

Base Roller Chains:
• Carbon Steel
• Stainless Steel

These chains are the heavier
duty two-piece side-flexing
system featuring a 3/4'' pitch
side flexing-roller chian which
has specially extended pins to
retain the plastic top. The system
can often prove to be a
wise investment as worn or
damage top plates can be
simply changed out on an
individual basis without having
to replace the complete chain.

The system provides the
benefit of a positive chain drive
which allow long center
distances and very high speeds
to be employed.

Top Plates are available from
stock in both LF Acetal or in
New generation.

The roller chain utilized the
gearing dimensions of ANSI 60-1
but due to the elongated pin is
not a standard chain. When
ordering only the base chain or
connecting links please note the
correct reference number as
per the attached tables.

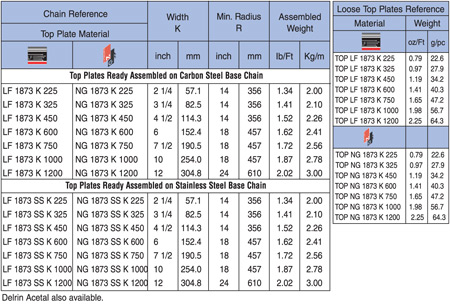

Table

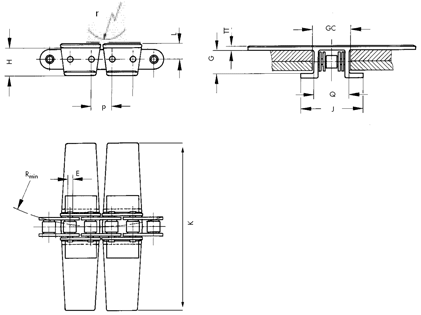

Technical Diagram

Description
