Two-Piece 863

863 Series
Available Materials:
Top Plates:
• Delrin Acetal
• Low Friction Acetal
• New Generation (to order)
Base Roller Chains:
• Carbon Steel
• Stainless Steel

These chains have a heavier
duty two-piece design featuring
plastic top plates which are
“snapped on” to a 3/4" pitch
roller chain with specially
extended pins to retain the
plastic top. The system can
often prove to be a wise
investment as worn or
damaged top plates can be
simply changed out on an
individual basis without having
to replace the complete chain.
The system provides the
benefits of a positive chain
drive which allows long center
distances and very high speeds
to be employed.
Top plates are available from
stock LF Acetal and on a made
to order basis in New Generation
or Anti-Static.
The roller chain utilizes the
gearing dimensions of ANSI
60-1 but due to the elongated
pin is not a standard chain.
When ordering only the base
chain or connecting links
please note the correct
reference number as per the
attached tables.

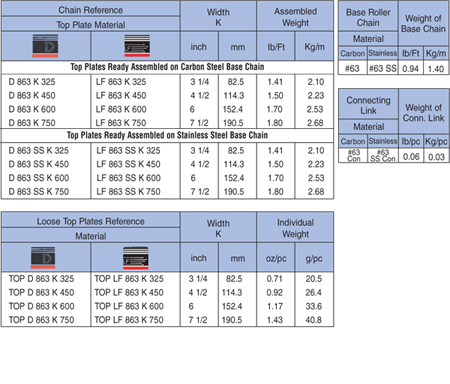

Table

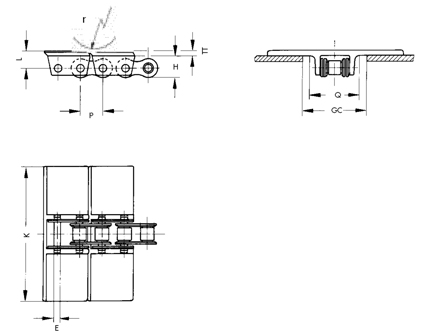

Technical Diagram

Description
