Compact Curve and Straight Guiding Sections Compact Curve provide a fast and trouble free solution to conveyor building. Produced from Polyethylene UHMW PE 1000 to consistently guarantee a perfect radius and clearance between the chain. The material does not absorb moisture thus preventing expansion and possibility of "trapping"chain. UHMW PE 1000 is also highly wear resistant and noise absorbing.

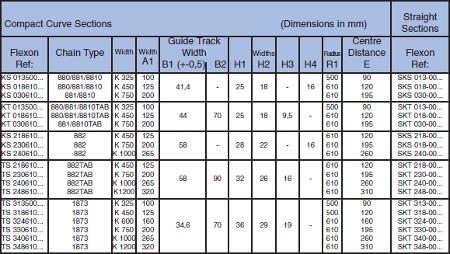

Table

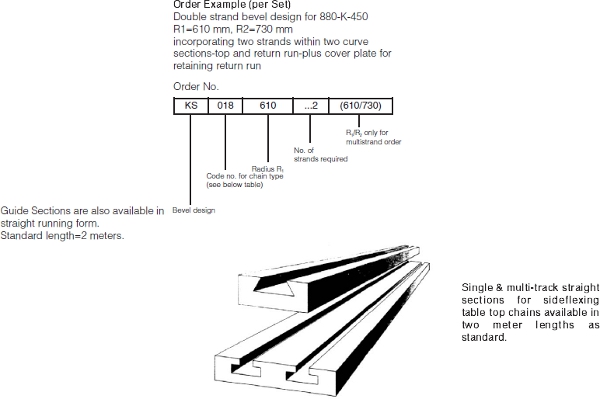

Order Example

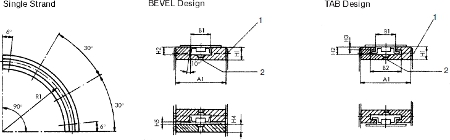

Technical Diagram

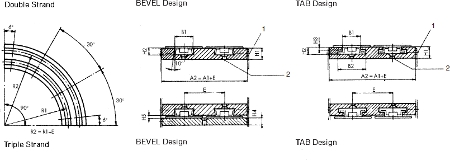

Technical Diagram/2

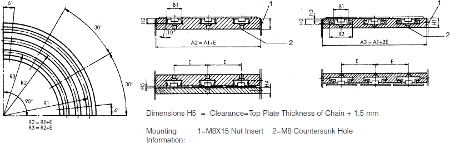

Technical Diagram/3
