Multiple - Flexing 1700/1701/TAB1702
 |
1700 Novoflex Series
Available Materials:
• White Delrin Acetal
• Low Friction Acetal
• New Generation
• Stainless Steel Pins
Novoflex 1700 multiple-Flexing chains, due to a three-piece link unit, enable the conveyance of products in three planes. Often used for inclining in "alpine"type conveyors with the smallest turn radius possible of any conveyer chain (6'' or 150mm).
Three-piece link unit consist of:
1. A pivot manufactured from a special Nylon Polyamide which guarantees low noise (anti- squeak).
2. Chain Link with fully founded edges designed for smooth operation and prevention of product damage.
3. Stainless Steel Pins which are knurled on one end only to provide a secure interference fit making the chain ideal for hot washing system.
Available in three main types:

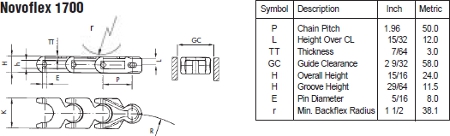

• 1700: The original design which features a central groove to allow engagement with turn discs. Often used in glass manufacturing plants.

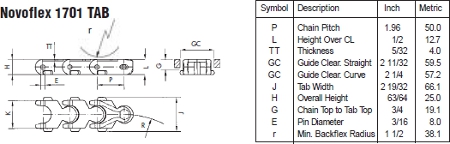

• 1701 TAB: Positive retention design utilized in the automotive industry or for heavy duty packaging.

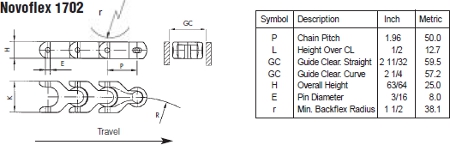

• 1702: Designed for flush sides for hygiene, and for this reason 1702 is primarily used in the diary industry for the transport of milk cartons.
|
