Multiple - Flexing Plate Tops Pushers

Flat Top Chains | Plastic Flat Top | Plastic Multiple |  Multiple - Flexing Plate Tops Pushers

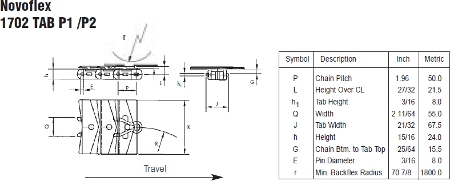

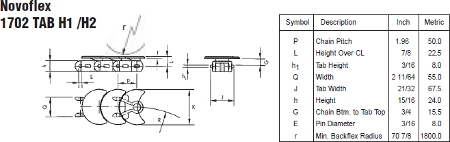

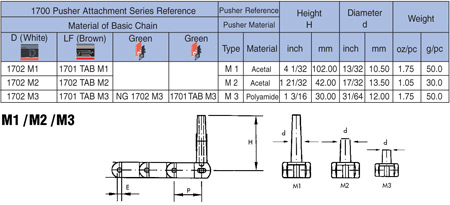

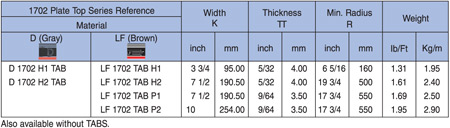

Multiple-Flexing: Plate Top and Pusher Attachments Novoflex Plate Top Chains Novoflex pusher Attachements Available Materials: • White Delrin Acetal • Gray Delrin Acetal • Low Friction Acetal • Stainless Steel Pins 1702 Series Plate Top Chains are available in two forms: • TAB H1/H2 Series: The extremely flat top plates have a crescent profile which provide a wide conveying area with limited gaps. Minimum turn radius can still be achieved by utilizing the smaller width H1 series. These chains feature a unique central TAB guide system which provides stability and is ideal for aluminium profile conveyor system. • TAB P1/P2 Series: These chains feature on overlapping top plate system which provides maximum operator security. As with the H series the chains feature a unique central TAB guide system for stability when installed in Aluminium profile guides. Novoflex 1700 Series/Pusher Attachments M1/M2/M3 M series attachments are available in three size providing a wide range of solutions for products which need to be pushed or carried. The attachments are assembled according to customer requirements (e.g. M1 4th pitch). The M3 attachment is a solid unit manufactured from chemical resistant Polyamide offering high load capacity. Is particularly used in create washing systems which demand high temperatures, often combined with New Generation link plate material which can operate up to 250 F (120 C).

Table

Technical Diagram

Technical Diagram/2

Table/2
