Split Plastic Sprockets (Solid Material)
Flat Top Chains
|
Sprockets
| Split Plastic Sprockets (Solid Material)
Split Plastic Sprockets (Solid Material)
Available Materials:
PA6G Nylon Polyamide
Stainless Steel bolts and thread insert
These sprocket wheels are machined from solid rods and then split across the axle to provide quick and easy installation and removal onto the conveyor shaft.
They provide many user advantage:
Hygiene- no dirt traps as with molded sprockets.
Can be bored to 2'' without
weakening body.
High strength.
Excellent wear life.
Lighter than cast iron.
Will not rust.
Easy to machine.
Low maintenance.

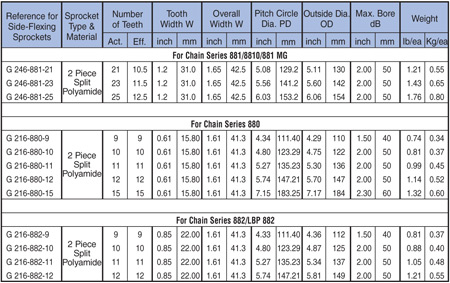

Table
Technical Diagram

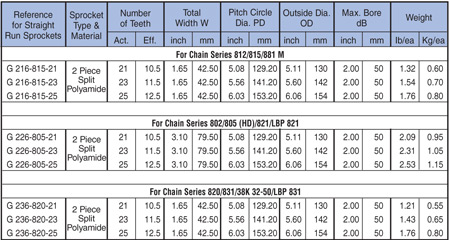

Table/2
Technical Diagram/2
