Series 880/879

880/879 Series
Available Materials:
• Low Friction Acetale
• New Generation
•Anti-Static Acetal
• Stainless Steels Pins

These side-flexing chains have the same basic external dimensions as the 881 stainless steel series and can operate in the same design track. As with the steel chain series 880 and the 879 chains are available in both Bevel and TAB configuration.
879 chains feature the thicker top plate of 3/16'' which makes them compatible in ride height to the 831, 821 and 882 series.
All side-flexing chains are now available in New Generation material which offers improved performance under dry conditions in turn conveyers.
880 chains are also available in 3 1/2'' width offering advantages for the transportation of wider bottles and containers.
Pin design is a special D shape which provides and anti-rotation flat and does not require a knurled press fit which can create unnecessary stresses in the plastic under heavy side loads in curves.

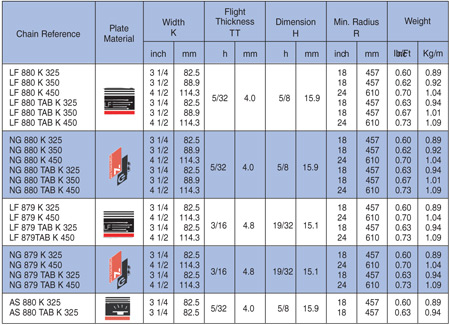

Table

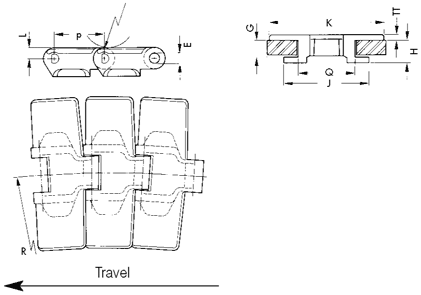

Technical Diagram

Technical Diagram/2
