Series 882

882 Series
Available Materials:
• Low Friction Acetale
• New Generation
• Stainless Steels Pins

These chains are heavy duty side-flexing design and due to the robust hinge design provide
high loading capabilities. 882 chains are available in both Bevel and Tab configuration, with TAB series being available up to 12'' width.
882 chains feature the thicker top plate of 3/16'' which makes them compatible in ride eight to the 831, 821, and 879 series.
All side-flexing chains are now available in New Generation material which offer improved performance under dry conditions in turn conveyors.
Pin design is a special D-shape which provides an anti-rotation flat and does not require a knurled press fit which can create unnecessary stresses in the plastic under heavy side loads in curves.

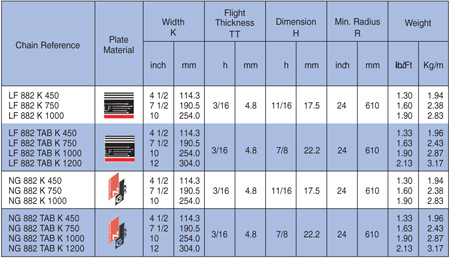

Table

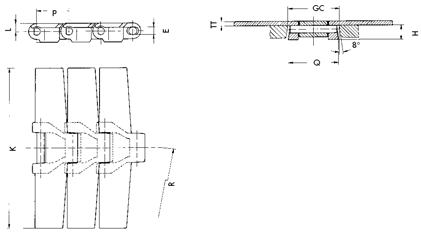

Technical Diagram

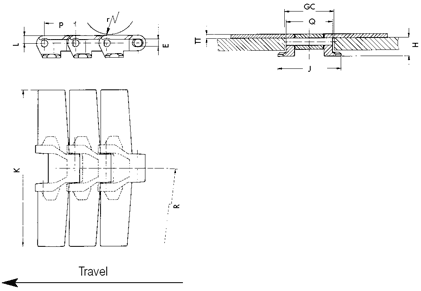

Technical Diagram/2
