Side-Flexing: Standard 8810 Series

Flat Top Chains | Carbon & Stainless Steel |  Side-Flexing: Standard 8810 Series

8810 Series 881O (Optimal) Series Available Materials: • Specialty Stainless Steels • Featuring ground surface finish • Carbon Steel made to order By optimizing the design of the top plates, the chain's links are able to "nest" more closely, thus providing improved product stability at high speed. As with the 881 series, all 8810 chains require either a Bevel or TAB to be welded on the underside of the chain. These too receive our unique grinding operation to remove any undesirable marking from the welding process. A special feature of the 8810 series is the inclusion of the 3 1/2" (88.9 mm) width. This affords the user an option other than the typical 3 1/4" and 4 1/2" widths.

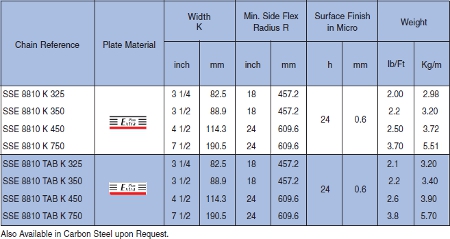

Table

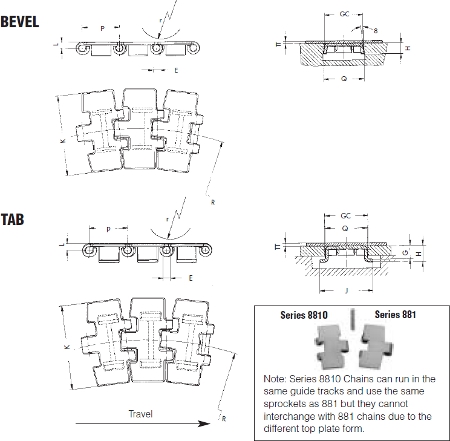

Technical Diagram

Dimension
