Side-Flexing: Two-Piece 1843
Flat Top Chains
|
Plastic Flat Top
|
Side-Flexing: Two-Piece
| Side-Flexing: Two-Piece 1843
Two-Piece 843
1843 Series
Available Materials:
Top Plates:
Low Friction Acetal
New Generation
Anti-Static
Base Roller Chains:
Carbon Steel
Stainless Steel
These chains have a two-piece design featuring plastic top plates which are "snapped on" to a 1/2" pitch roller chain with specially extended pins to retain the plastic top. The plastic tops design providing positive retention and anti-lift when running in tight radius curves as low as 10'' (254mm).
Guide tracks are usually manufactured from extruded aluminium. The 1843 chain features heavily in conveyers designed for automotive parts handling or assembling lines for electronic goods. For this reason Top Plates are also available in Anti-Static material.The roller chain utilized the gearing dimensions of ANSI 40-1 but due to the elongated pin is not a standard chain. When ordering only the base chain or connecting links please note the correct reference number as per the attached tables.

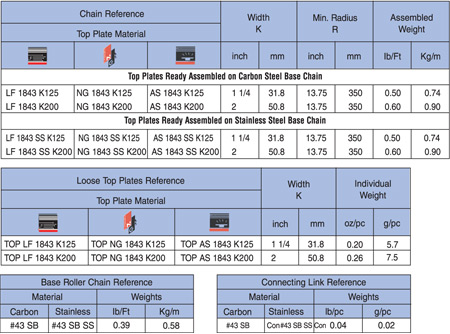

Table

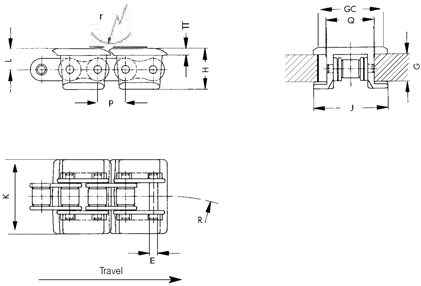

Technical Diagram
Description
