Two-Piece 1873

1873 Series
Available Materials:

Top Plates:
• Delrin Acetal
• Low Friction Acetal
• New Generation

Base Roller Chains:
• Carbon Steel
• Stainless Steel

These chains are the heavier duty two-piece side-flexing system featuring a 3/4'' pitch side flexing-roller chain which has specially extended pins to retain the plastic top. The system can often prove to be a wise investment as worn or damage top plates can be simply changed out on an individual basis without having to replace the complete chain.
The system provides the benefit of a positive chain drive which allow long center distances and very high speeds to be employed.
Top Plates are available from stock in both LF Acetal or in New generation. The roller chain utilized the gearing dimensions of ANSI 60-1 but due to the elongated pin is not a standard chain. When ordering only the base chain or connecting links please note the correct reference number as per the attached tables.

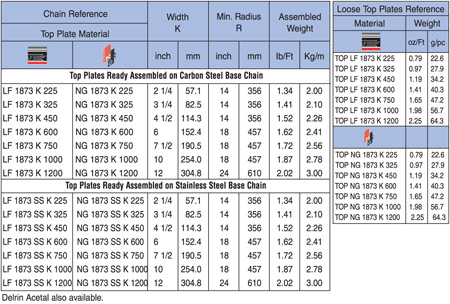

Table

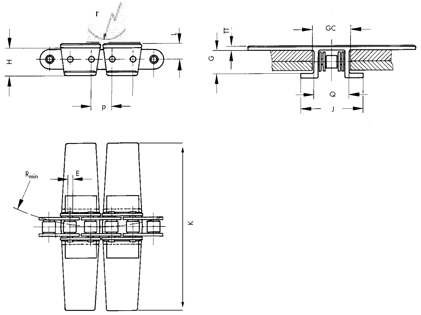

Technical Diagram
