LBP 882 Low Back Pressure
 |
LBP Series
Available Materials:
• Low Friction Acetale
• New Generation Rollers
• Stainless Steels Pins
LBP (Low Back Pressure) chains are used in conveyor systems where backline pressure can occur. Under these conditions the chain will continue to run underneath the product but the top surface rollers will rotate, remove line pressure and consequently prevent damage to products. The LBP chain will provide positive motivation when backline pressure is removed.
The rollers are attached to the top of the chain by series of stainless steel axles. The small center distance of these axles offers a very stable conveying surface which can also be used for heavy duty goods. Rollers produced in New Generation material provide reduced operating noise levels.

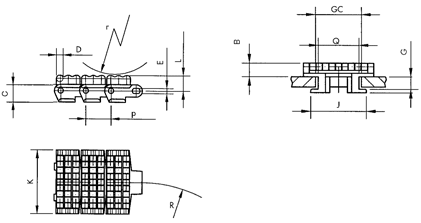

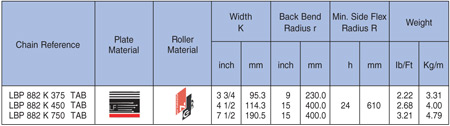

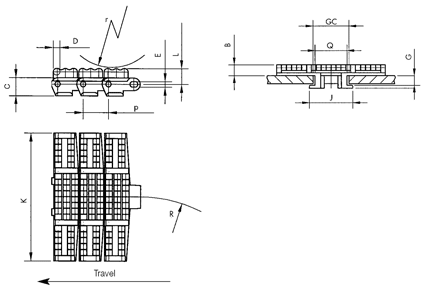

882 TAB LBP Series are available in three widths, the wider widths having a slightly different roller configuration.
|
