Mini Series
Mini Series
Available Materials:
• Delrin Acetate (Black)
• Delrin Acetate (Grey)
• Low Friction Acetal
• Stainless Steel Pins
Exclusive Mini-hinge design for use in areas where space is restricted or for the small containers or bottles. Ideal for the pharmaceutical industry and for the filling of miniature spirit bottles.
Both Series 38 K 32 and K 50 chains have their own unique hinge designs which create new possibilities for conveyor designers.
Sprockets standard 820 series, but with narrow width.

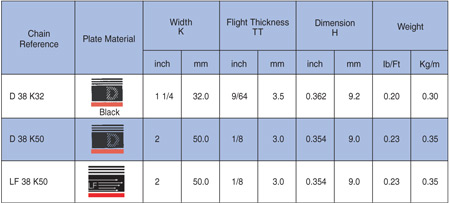

Table

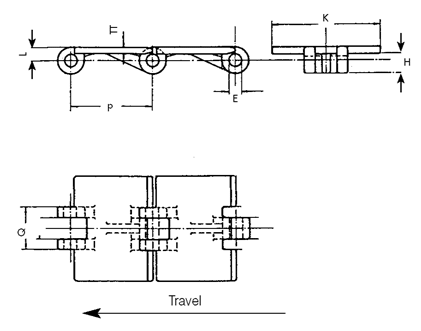

Technical Diagram

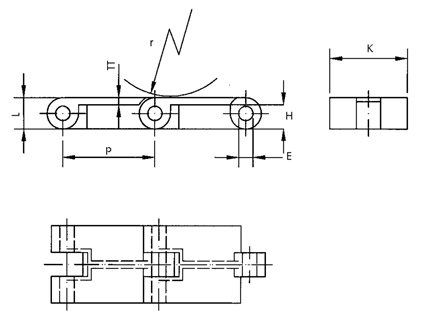

Technical Diagram/2
Description
