Two-Piece 863

863 Series
Available Materials:
Top Plates:
• Delrin Acetal
• Low Friction Acetal
• New Generation (to order)
Base Roller Chains:
• Carbon Steel
• Stainless Steel

These chains have a heavier duty two-piece design featuring plastic top plates which are "snapped on" to a 3/4" pitch roller chain with specially extended pins to retain the plastic top. The system canoften prove to be a wise investment as worn or damaged top plates can be simply changed out on an individual basis without having to replace the complete chain. The system provides the benefits of a positive chain drive which allows long center distances and very high speeds to be employed. Top plates are available from stock LF Acetal and on a made to order basis in New Generation or Anti-Static. The roller chain utilizes the gearing dimensions of ANSI 60-1 but due to the elongated pin is not a standard chain. When ordering only the base chain or connecting links please note the correct reference number as per the attached tables.

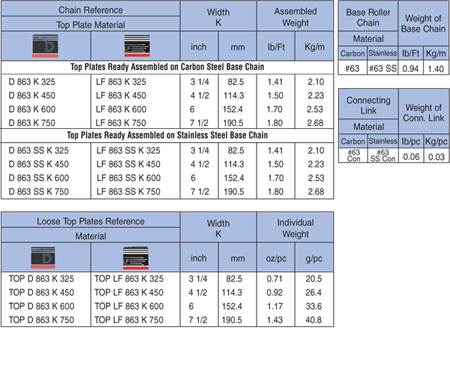

Table

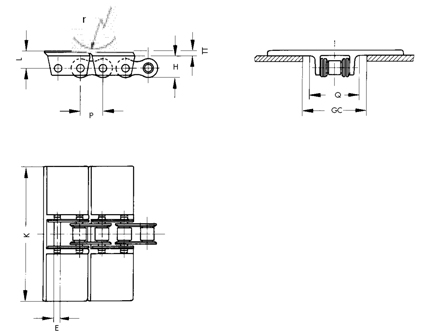

Technical Diagram

Description
