Straight Run: 1" Pitch
Flat Top Chains
|
Carbon & Stainless Steel
| Straight Run: 1" Pitch
515 Series
515 Series
Available Materials:
• Specialty Stainless Steels
These chains are built in accordance with ISO 4348 (B29.17) and are single-hinge straight running conveyor chains but feature a smaller pitch than the popular 815 series. The pitch of 1" allows compact conveyor designs, especially suitable for the transportation of products with narrow dimensions. The hinge width is identical to the 815 series but much smaller plate widths are available.515 series are particularly used on the in-feed of bottle washing equipment due to excellent end transferability.

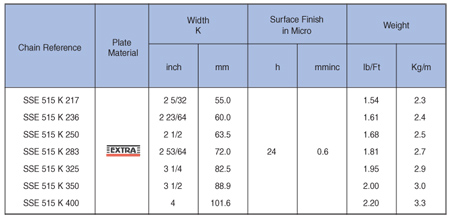

Table

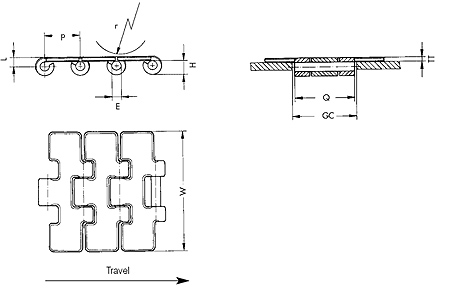

Technical Diagram

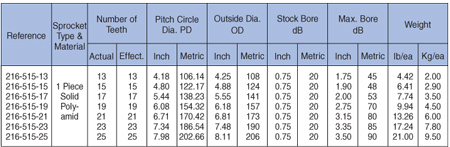

Table 2

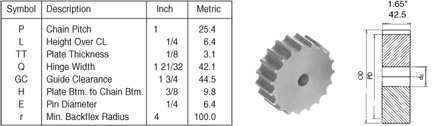

Description
