Straight Run: Vulcanized Rubber Pad

Flat Top Chains | Carbon & Stainless Steel |  Straight Run: Vulcanized Rubber Pad

815/805 Griptop Series 815/805 Griptop Series Available Materials: • Specialty Stainless Steels with vulcanized Rubber Top Pad • Carbon Steel plate material (to order) These chains were designed to provide a top plate surface with a grip effect to allow products to be inclined on conveyors at an angle of up to 20°. The basic chains utilized are the 815 and 805 series in straight running format. These chains are intended to replace rough top belting for crate or box handling and provide the following advantages over traditional belting: • No slippage due to positive tooth sprocket drives, one way clutches are not needed. • Higher loading capacities. • Planned maintenance improved as chain w ear is easier to monitor than the tendency of a belt to tear. Straight running 815 TAB version also provides a method of chain return which prevents the rubber top from having to run against another surface.

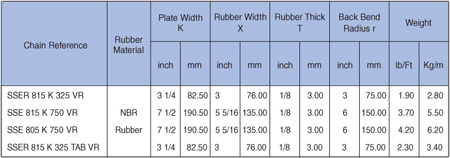

Table

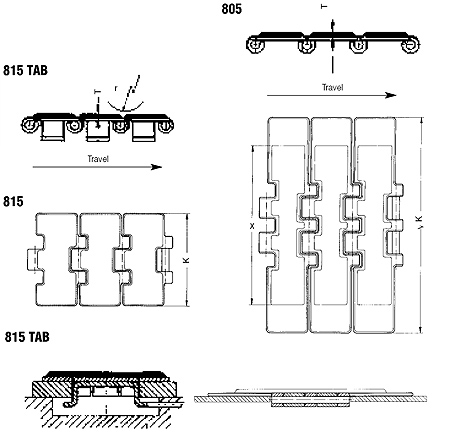

Technical Diagram
